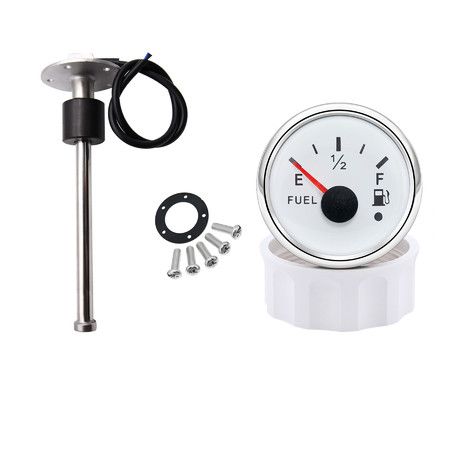

    125mm 240-33ohms Fuel Level Sensor Sender+White 52mm Fuel Level Gauge for Boat Car Truck ATV

    facebook like, tweet button, Email to a Friend
    •  Be the first to review this product

    PID: 87755

    QTY: In Stock
    or 4 interest free payments of $14.24 with ,zip

    Postage

    Enter and Choose Your Suburb to Check the Postage

    Delivery & Handling: $10.47  ETA: 7 - 15 business days

    Shipping Carrier: International Registered Post

    Ships from and sold by Globaloutlet

    Features:

    • Features:
    • Suitable for truck, generators/gen set,bus and marine field.
    • Widely used in fuel, waste water.
    • Reed switch, steady output signal.

    +  more info

    contact us for more discounts on bulk buys

    Customer Who Bought These Products Also Bought

    Product:

    Gauge Connection:

    Black: Ground(-)
    Red: 9-30VDC(+)
    Blue: signal Input Connect the signal of the fuel sender
    Yellow: Backlight(+)
    White: No need connect(If need 240-33ohms, no need connect the white cable, if needed 0-190ohms, please take it to connect the negative)
    Sender connection:

    Brown: Signal output
    Blue: Negative(-)

    Package:

    1 x 52mm Fuel Level Gauge
    1 x Fuel Sending Units
    1 x Instruction manual
    1 x Wiring harness

    Features:

    • Features:
    • Suitable for truck, generators/gen set,bus and marine field.
    • Widely used in fuel, waste water.
    • Reed switch, steady output signal.
    • Simple and stronge structure , Advanced corrosion resistance.
    • Long using life, anti-vibration,anti-explosion.
    • High quality fuel level senser.
    • Economical level sensing solution, long service lifespan.

    Specification:

    Fuel/Water Level Gauge Specification:
    Size:dia 52mm
    Backlight:Red
    Indicating Range:E- F
    Working voltage: 9-32V
    Waterproof rating: IP67
    Material:Stainless steel
    Signal:240-33ohms
    Working Temperature:-30~+75
    Storage Temperature:-40~+85
    Color:White&Silver
    Sensor Specification:
    Please attention we have 6 models Level Sensor Length Range for choice:
    100mm,125mm,150mm,175mm, 200mm,225mm,250mm....
    Material: 316 Stainless Steel
    Protection Rank: IP67
    Resistance output signal: 240-33 ohm(Standard American)
    Operational Temperature: -40°F ~ +185°F (-40°C ~ +85°C)
    Screw size: M5*16
    Level Sensor Support Water Level Gauge and Fuel Level Gauge
    INSTRUCTIONS
    Blue - Ground
    Brown- connect to instrument signal line
    The sensor can not be connected to the power supply, can not be connected to the positive electrode, does not need to be connected to the power supply, it is connected with the gauge signal directly
    Empty oil level 240 ohm/0ohm
    Full oil level 33ohm/190ohm

    Warranty:

    This product comes with a 30 Days Manufacturer's Warranty, please click here for details.

    For warranty and returns assistance please contact us.

    Statutory conditions and warranties also apply.

    Thank you for viewing this product. To purchase this product, click"Add to Cart".
